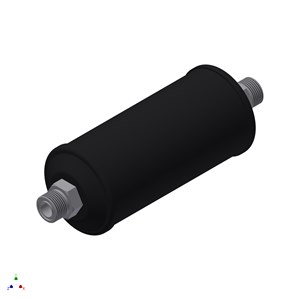

PHIN LỌC DANFOSS DCL-305FS (16mm) - C/N 023Z0218

Gross weight

1.537 Kilogram

Net weight

1.43 Kilogram

Volume

2.132 Liter

EAN

5702428159005

Acid capacity [g]

6.23 g

Acid capacity [oz]

0.22 oz

Activated alum/Molec sieve [%]

20% / 80%

Activated alumina [%]

20 %

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

China RoHS compliance

Yes exceed limitations

Connection material

Steel

Core

Solid core

Core Size code

30 cu.in.

Core type

Solid core

Drying Cap[Drops of Water]24°C

R134a: 888; R290: --; R32: 748; R404A: 925; R407C: 863; R410A: 804; R507: 969

Drying Cap[Drops of Water]52°C

R134a: 813; R290: --; R32: 688; R404A: 877; R407C: 795; R410A: 715; R507: 872

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Filter application

Std Moisture & Acid Capacity

Flow capacity [kW]

R134a: 45.4; R290: --; R32: 69.3; R404A: 32.0; R407C: 46.6; R410A: 47.3; R507: 31.0

Flow capacity [TR]

R134a: 12.9; R290: --; R32: 19.7; R404A: 9.1; R407C: 13.2; R410A: 13.4; R507: 8.8

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet 1 connection size [in]

5/8 in

Inlet connection type

Face seal

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar
tliq= 30°C
tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi
tliq= 86°F
tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Molecular sieve [%]

80 %

Net volume [foz US]

15.68 Fluid Ounce US

Net volume [l]

0.464 L

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515A

Outlet 1 connection size [in]

5/8 in

Outlet connection type

Face seal

Packing format

Multi pack

PED category

Art. 4, par. 3

Product accessories

No

Product description

Liquid line filter drier

Product group

Filter driers

Product Name Description

Hermetic filter drier

Quantity per packing format

8 pc

REACH Candidate List substances

No

Refrigerants

R1233zd(E)
R1234yf
R1234ze(E)
R125
R134a
R22/R407C
R23
R290
R32
R404A
R407A
R407F
R407H
R410A
R422B
R422D
R438A
R444B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R507A
R513A
R515B
R516A
R600

Serviceable

No

Shell volume [foz US]

24.42 Fluid Ounce US

Shell volume [l]

0.72 L

Solid core surface [cm2]

340 cm²

Solid core surface [in2]

52.7 in²

Solid core volume [cm3]

258 cm³

Solid core volume [in3]

15.77 in³

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type

DCL

Type designation

DCL 305FS

UK RoHS compliance

Out of scope

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
