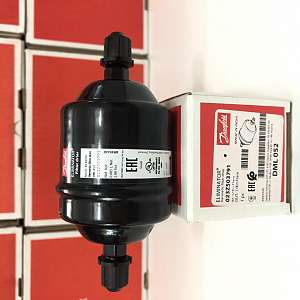

PHIN LỌC DANFOSS DML-052 ( 6 mm) - C/N 023Z503791

Gross weight

0.276 Kilogram

Net weight

0.248 Kilogram

Volume

0.572 Liter

EAN

5702428650083

Acid capacity [g]

0.33 g

Acid capacity [oz]

0.012 oz

Activated alum/Molec sieve [%]

0% / 100%

Activated alumina [%]

0 %

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

China RoHS compliance

Yes exceed limitations

Connection material

Steel

Core

Solid core

Core Size code

05 cu.in.

Core type

Solid core

Drying Cap[Drops of Water]24°C

R134a: 155; R290: --; R32: 130; R404A: 161; R407C: 150; R410A: 140; R507: 169

Drying Cap[Drops of Water]52°C

R134a: 141; R290: --; R32: 120; R404A: 152; R407C: 138; R410A: 124; R507: 152

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Filter application

High Moisture Capacity

Flow capacity [kW]

R134a: 6.1; R290: --; R32: 9.3; R404A: 4.3; R407C: 6.2; R410A: 6.3; R507: 4.2

Flow capacity [TR]

R134a: 1.7; R290: --; R32: 2.6; R404A: 1.2; R407C: 1.8; R410A: 1.8; R507: 1.2

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet 1 connection size [in]

1/4 in

Inlet connection size [mm]

6 mm

Inlet connection type

Flare

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar; tliq= 30°C; tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi; tliq= 86°F; tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Molecular sieve [%]

100 %

Net volume [foz US]

2.88 Fluid Ounce US

Net volume [l]

0.085 L

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A

Outlet 1 connection size [in]

1/4 in

Outlet connection size [mm]

6 mm

Outlet connection type

Flare

Packing format

Multi pack

PED category

Art. 4, par. 3

Product accessories

Generic accessories

Product description

Liquid line filter drier

Product group

Filter driers

Product Name Description

Hermetic filter drier

Quantity per packing format

24 pc

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A

Serviceable

No

Shell volume [foz US]

4.12 Fluid Ounce US

Shell volume [l]

0.12 L

Solid core surface [cm2]

82 cm²

Solid core surface [in2]

12.72 in²

Solid core volume [cm3]

37 cm³

Solid core volume [in3]

2.25 in³

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type

DML

Type designation

DML 052

UK RoHS compliance

Out of scope

UL approval file name

SA6398

UL approved refrigerants

R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A ; R449A; R449B; R450A; R452A; R507A; R513A
