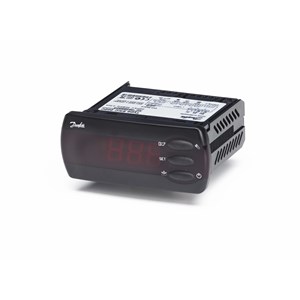

BỘ ĐIỀU KHIỂN THIẾT BỊ LÀM LẠNH DANFOSS (TXV), EKC 202C - C/N 084B8523

Gross weight

0.252 Kilogram

Net weight

0.211 Kilogram

Volume

0.503 Liter

EAN

5702428081122

Application area

Refrigeration control

Approval

C-TICK
CE
EAC
Intertek Semco
cURus

China RoHS compliance

Out of scope

Communication type

Optional LON,
Optional MODBUS

Controller type

Refrig. Controller (Temp)

Display on front

Yes

EEE category

5 small equipment (any external dimension 50 cm)​

EU RoHS compliance

Out of scope

Frequency [Hz]

50/60 Hz

Function

4 Outputs,2 Temp.Sensors, DI

In scope of WEEE

Yes

Number of Compressors max.

1 pc

Number of Evaporators max.

1 pc

Other RoHS documentation

EAEU RoHS

Packing format

Multi pack

Power consumption [VA]

2.5 VA

Product accessories

Electron. control accessories

Product group

Evaporator and room control

Product Name Description

Refrig appliance control (TXV)

Quantity per packing format

20 pc

REACH Candidate List substances

No

Serviceable

No

Supply voltage [V] AC

230 V

Temp. sensor support

NTC-M2020
PTC 1000
Pt 1000

Type

EKC 202C

UK RoHS compliance

Out of scope
