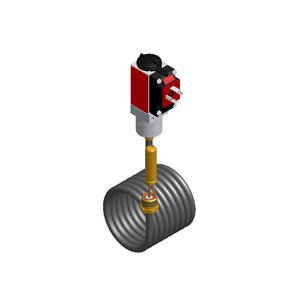

CÔNG TẮC NHIỆT ĐỘ DANFOSS MBC 8100 70 - 120oC, 2000mm, M 18 x 1.5, 4K, ( MBC8100-2431-0A02000) No Plug - C/N 061B818566

Gross weight

0.692 Kilogram

Net weight

0.35 Kilogram

Volume

3.497 Liter

EAN

5702423269860

Alarm Signal

Rising

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ABS
BV
CCC
CCS
CE
DNV
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK
UKCA

Armoring

Yes

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V
DC13=12 W, 125 V

Differential (FS) [K]

4 K

Differential type

Fixed (max. value)

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

Equipment

Armored cap. tube

EU RoHS compliance

Out of scope

Factory setting (FS) [°C]

80 °C

Factory setting type

Dedicated

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

6 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

78250f8e-5849-44ad-ae3b-a65731351f9b

Sensor pocket length min. [in]

2 9/16 in

Sensor pocket length min. [mm]

65 mm

Sensor size (Ø x L) [in]

1/2 x 2 in

Sensor size (Ø x L) [mm]

13 x 50 mm

Sensor type

Remote bulb

Serviceable

No

Specification key

2431-0A02000

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

70 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

158 °F

Type

MBC 8100

UK RoHS compliance

Out of scope
