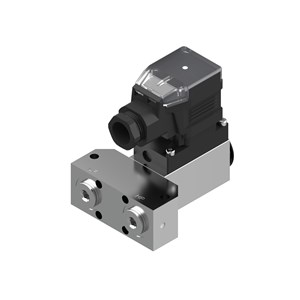

CÔNG TẮC CHÊNH ÁP DANFOSS MBC5180-2031-2DB04, Rising 0.3Bar - C/N 061B129966

Gross weight

0.414 Kilogram

Net weight

0.294 Kilogram

Volume

0.983 Liter

EAN

5702423296231

Alarm Signal

Rising

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-10 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

14 °F

Approval

ABS
CCC
CCS
CE
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RoHS
RoHS China
TYSK
UKCA

Burst pressure [bar]

90 bar

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V
DC13=12 W, 125 V

Diff.press.setting range [bar] [max]

5 bar

Diff.press.setting range [bar] [min]

0.3 bar

Diff.press.setting range [MPa] [max]

0.5 MPa

Diff.press.setting range [MPa] [min]

0.03 MPa

Diff.press.setting range [psi] [max]

72.5 psi

Diff.press.setting range [psi] [min]

4.3 psi

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 13.5

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Factory setting [bar]

0.3 bar

Factory setting [MPa]

0.03 MPa

In scope of WEEE and contain batteries

No

Max. test pressure [bar] Pe

68 bar

Max. test pressure [psig]

986 psig

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

653 psig

Operat. range LP side [bar] Pe [max]

30 bar

Operat. range LP side [bar] Pe [min]

0 bar

Operat. range LP side [psig]Pe [max]

435 psig

Operat. range LP side [psig]Pe [min]

0 psig

Other RoHS documentation

Saudi Arabia RoHS

Packing format

Multi pack

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Product accessories

Generic accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product Name Description

Differential pressure switch

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Relay release time [s]

0 s

Reset function

Auto

SCIP dossier no.

c9549e84-c103-45b0-86ec-6021ce3385c8

Serviceable

No

Specification key

2031-2DB04

Type

MBC 5180

UK RoHS compliance

Out of scope
