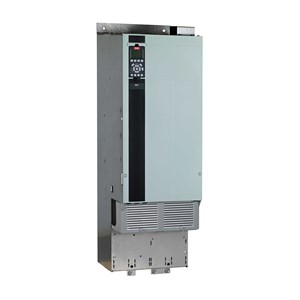

Biến tần Danfoss VLT Refrigeration Drive FC-103N315T4E20H2XGC7XXSXXXXALBXCXXXXDX - 315 KW / 450 HP, 380 - 480 VAC, IP20, RFI filter, Graphical LCP, Coated PCB, Fuse, Profinet MCA 120 - C/N 134U5070
Frequency converter
FC-103N315T4E20H2XGC7XXSXXXXALBXCXXXXDX
VLT® Refrigeration Drive FC-103
(N315) 315 KW / 450 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI filter Class A2
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
PROFINET MCA 120, No B Option
No C1 option, No D option
Frame: D4H
Other options according to Model code
Model code:FC-103N315T4E20H2XGC7XXSXXXXALBXCXXXXDX
Product details
|
Gross weight |
140 kg |
||
|
Net weight |
125 kg |
||
|
Volume |
0 l |
||
|
EAN |
5710108010782 |
VLT® REFRIGERATION DRIVE FC 103 SERIES
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
FC- |
VLT® Refrigeration Drive |
|
|
Series |
103 |
103 |
|
|
Power Rating |
N315 |
(N315) 315 KW / 450 HP |
|
|
Phase |
T |
Three phase |
|
|
Mains Voltage |
4 |
380 - 480 VAC |
|
|
Enclosure |
E20 |
(E20) IP20 / Chassis |
|
|
RFI Filter |
H2 |
RFI filter Class A2 |
|
|
Brake - Safe Stop |
X |
No brake chopper |
|
|
LCP |
G |
Graphical Loc. Cont. Panel |
|
|
Coating PCB |
C |
Coated PCB |
|
|
Mains Option |
7 |
Fuse |
|
|
Adaptation A |
X |
Standard Cable Entries |
|
|
Adaptation B |
X |
No adaptation |
|
|
Software Release |
SXXX |
Latest release std. SW. |
|
|
Software Language Pack |
X |
Standard Language Pack |
|
|
A Option |
AL |
PROFINET MCA 120 |
|
|
B Option |
BX |
No B Option |
|
|
C0 Option MCO |
CX |
No C0 option |
|
|
C1 Option |
X |
No C1 option |
|
|
C Option Software |
XX |
No software option |
|
|
D Option |
DX |
No D option |
|
|
Frame Size |
D4H |
D4H |
|
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Typecode Part 1 |
FC-103N315T4E20H2XGC |
||
|
Typecode Part 2 |
7XXSXXXXALBXCXXXXDX |
||
|
Power 110% (NO) [KW] |
315 |
||
|
Height w/ Regen/Loadshare [mm] |
1268,0 |
||
|
Height [mm] |
1122,0 |
||
|
Width w/ no C options [mm] |
350,0 |
||
|
Depth [mm] |
375,0 |
||
|
Depth with Option A/B [mm] |
375,0 |
||
|
kVA |
407 |
||
|
Power Loss NO [W] |
6663 |
||
|
Power Loss NO [W] |
5703 |
||
|
Continuous Current (NO) [A] |
588 |
||
|
Intermittent Current (NO) [A] |
647 |
||
|
Continuous Current (NO) [A] |
535 |
||
|
Intermittent Current (NO) [A] |
588 |
||
|
Calculated Gross Weight [kg] |
125.3 |
||
|
Calculated Net Weight [kg] |
125 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
|
Modelcode01 |
FC-103N315T4E20H2XGC |
||
|
Modelcode02 |
7XXSXXXXALBXCXXXXDX |
