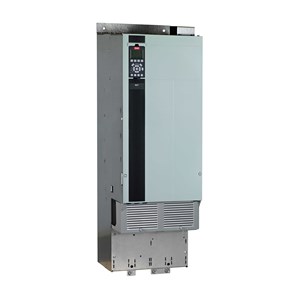

BIẾN TẦN DANFOSS VLT AQUA DRIVE FC-202N315T7E20H2XGCXXXSXXXXAXBXCXXXXDX - C/N 134G8767

Gross weight

124 kg

Net weight

109 kg

Volume

0 l

EAN

5710107637317

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AQUA Drive FC-

Series

202

202

Power Rating

N315

(N315) 315 KW / 450 HP

Phase

T

Three phase

Mains Voltage

7

525 - 690 VAC *

Possible rating issue

WARN01

Possible Rating Issue:

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

D4H

D4H

Typecode Part 1

FC-202N315T7E20H2XGC

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

250

Power 110% (NO) [KW]

315

Height [mm]

1122,0

Height w/ Regen/Loadshare [mm]

1268,0

Width w/ no C options [mm]

350,0

Depth [mm]

375,0

Depth with Option A/B [mm]

375,0

kVA

411

Power Loss NO [W]

4465

Power Loss NO [W]

4614

Power Loss HO [W]

3642

Power Loss HO [W]

3771

Continuous Current (NO) [A]

360

Intermittent Current (NO) [A]

396

Continuous Current (NO) [A]

344

Intermittent Current (NO) [A]

378

Continuous Current (HO) [A]

303

Intermittent Current (HO) [A]

454

Continuous Current (HO) [A]

290

Intermittent Current (HO) [A]

435

Calculated Gross Weight [kg]

125.3

Calculated Net Weight [kg]

125

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-202N315T7E20H2XGC

Modelcode02

XXXSXXXXAXBXCXXXXDX

Recommended Plant

ERR01
