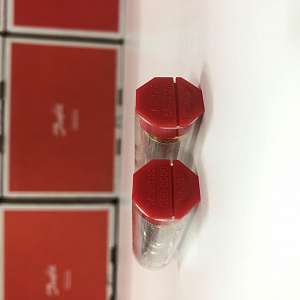

PHỤ TÙNG KIM VAN DANFOSS T2/TE2-05 - C/N 068-2008

Gross weight

0.018 Kg

Net weight

0.013 Kg

Volume

0.017 Liter

EAN

5702422020400

Approval

EAC; LLC CDC TYSK

China RoHS compliance

Out of scope

Design

SAE flare only

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Fluid Group

1

In scope of WEEE and contain batteries

No

Orifice size

05

Packing format

Multi pack

Parts Program name

T2/TE2

PED category

Art. 4, par. 3

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Orifice for expansion valve

Quantity per packing format

25 pc

Rated cap. cond. Range N [IMP]

tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

tcond=38 ºC  ;tevap=4.4 ºC; tliq=37 ºC

Rated cap. R134a, Range N [kW]

8.4 kW

Rated cap. R134a, Range N [TR]

2.4 TR

Rated cap. R22, Range B [kW]

7.3 kW

Rated cap. R22, Range B [TR]

2.1 TR

Rated cap. R22, Range N [kW]

16.7 kW

Rated cap. R22, Range N [TR]

4.8 TR

Rated cap. R404A, Range B [kW]

5.9 kW

Rated cap. R404A, Range B [TR]

1.7 TR

Rated cap. R404A, Range N [kW]

13 kW

Rated cap. R404A, Range N [TR]

3.7 TR

Rated cap. R407C, Range N [kW]

16.5 kW

Rated cap. R407C, Range N [TR]

4.7 TR

Rated cap. R507, Range B [kW]

5.9 kW

Rated cap. R507, Range B [TR]

1.7 TR

Rated cap. R507, Range N [kW]

13 kW

Rated cap. R507, Range N [TR]

3.7 TR

Rated cap. R513A, Range N [kW]

6.9 kW

Rated cap. R513A, Range N [TR]

2 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a/R513A; R22/R407C; R23; R236fa; R404A/R507A; R407A; R407C; R448A; R449A; R452A

SCIP dossier no.

c164ed45-f10d-4d73-9eae-355ccb479f4b

SCIP dossier product name

T2 /TE2 - Thermostatic Expansion Valve

Serviceable

No

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

ORF

UA address


UK RoHS compliance

Out of scope

Used for product

T 2; TE 2
