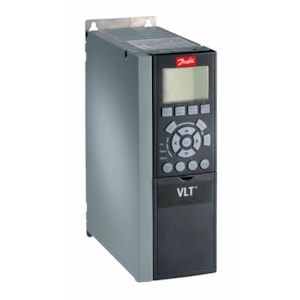

BIẾN TẦN DANFOSS FC302 4.0KW - C/N 131Z3124

CHARACTERISTIC

                                                                          VALUE

PRODUCT GROUP

(FC-) VLT® AutomationDrive FC

SERIES

(302) 302 Advanced

POWER RATING

(P4K0) 4.0 KW/5.5HP

PHASE

(T) Three phase

MAINS VOLTAGE

(5) 380-500 VAC

ENCLOSURE

(E20) IP20/Chassis

RFI FILTER

(H2) RFI Class A2 (C3)

BRAKE - SAFE STOP

(B) Brake chopper

LCP

(G) Graphical Loc.Cont.Panel

COATING PCB

(X) Not coated PCB

MAINS OPTION

(X) No Main Option

ADAPTATION A

(X) Standard Cable Entries

ADAPTATION B

(X) No adaptation

SOFTWARE RELEASE

(SXXX) Latest release sdt.SW.

SOFTWARE LANGUAGE PACK

(X) Standard Language Pack

A OPTION

(AU) PROFIBUS Converter MCA114

B OPTION

(BX) No B Option

C0 OPTION MCO

(CX) No C0 option

C1 OPTION

(X) No C1 option

C OPTION SOFTWARE

(XX) No software option

D OPTION

(D0) 24V DC backup

FRAME SIZE

(A2) A2

TYPECODE PART 1

FC-302P4K0T5E20H2BGX

TYPECODE PART 2

XXXSXXXXAUBXCXXXXD0

PRODUCT CATALOG

(GLBL) Global (Standard)

VENDOR

(200010) Factory DK

VENDOR REGION

(NER) Northern Europe

CALCULATED GROSS WEIGHT

 5.200

CALCULATED NET WEIGHT

 4.900
