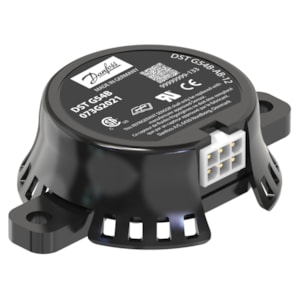

CẢM BIẾN KHÍ DANFOSS DST G54B, R454B - C/N 073G2021

Gross weight

58 Gram

Net weight

46 Gram

EAN

5715162782064

+ supply

Pin 1

- common

Pin 2

Alarm reset [LFL hysteresis %]

2,5

Alarm threshold [LFL %]

12

Ambient temperature range [°C] [max]

95 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

200 °F

Ambient temperature range [°F] [min]

-40 °F

Communication configuration

Danfoss Default

Electrical connection

Mini Mate-N-Lok

Electrical connection size

6 pin

Electrical connection standard

EN 60529

Enclosure design

Round Ø6 black

Enclosure rating IP

IP54

EU RoHS compliance

Yes

Flame rating

UL 94 V-0

Housing material

PA66 25% Glass fiber

In scope of WEEE and contain batteries

No

International Article Number

5715162782064

Measuring range [°C] [max]

80 °C

Measuring range [°C] [min]

-40 °C

Measuring range [°F] [max]

175 °F

Measuring range [°F] [min]

-40 °F

Mod A

Pin 3

Mod B

Pin 4

Mounting interface

2 Brackets 180 dgr

Output signal

Dual

Packing format

Industrial pack

Pin 1

+ supply

Pin 2

- common

Pin 3

Modbus A

Pin 4

Modbus B

Pin 5

Relay input

Pin 6

Relay NO

Pressure range [bar] [max]

1.2 bar

Pressure range [bar] [min]

0.7 bar

Pressure range [psi] [max]

17.4 psi

Pressure range [psi] [min]

10.15 psi

Product group

Sensors

Product Name Description

Gas sensor

Quantity per packing format

80 pc

REACH Candidate List substances

No

Recovery time [min]

5

Refrigerants

R454B

Rel. Humidity conditions

0 - 100

Relay NC

Pin 5

Relay NO

Pin 6

Response time [S]

15

Specification key

DST G54B-AB-12-0AAB-LC003-I

Supply current max. [mA]

300 mA

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Type

DST G54B

UL evaluated

Yes
