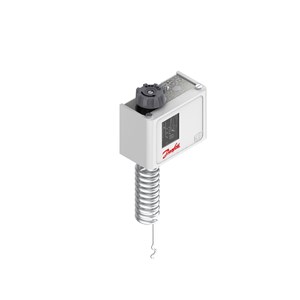

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP75 - C/N 060L121266

Gross weight

0.428 Kg

Net weight

0.364 Kg

Volume

1.327 Liter

EAN

5702423159659

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

150 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

BV
CCC
CE
CMIM
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
UKCA

Charge type

Adsorption

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V

Diff. @ Max. range setting [K]

3 K

Diff. @ Max. range setting[°C]

3 °C

Diff. @ Min. range setting [K] [max]

10 K

Diff. @ Min. range setting [K] [min]

4 K

Diff. @ Min. range setting[°C] [max]

10 °C

Diff. @ Min. range setting[°C] [min]

4 °C

Differential type

Adjustable

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV
Insulation: 400V
Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

80 °C

Max. sensor temperature [°F]

176 °F

Packing format

Multi pack

Parts included

Screws

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

32 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

b1323c86-8856-44cc-b1c6-6849abe37ee4

SCIP dossier product name

KP/KPI pressure switch

Sensor size (Ø x L) [in]

1 x 3 in

Sensor size (Ø x L) [mm]

25 x 78 mm

Sensor type

Room sensor

Serviceable

No

Temperature range [°C] [max]

40 °C

Temperature range [°C] [min]

0 °C

Temperature range [°F] [max]

104 °F

Temperature range [°F] [min]

32 °F

Type

KP75

UK RoHS compliance

Yes

UL approval file name

E31024
MH27572
