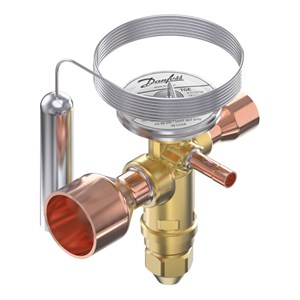

VAN TIẾT LƯU DANFOSS TGE, R22/R407C - C/N 067N2158

Gross weight

0.464 Kg

Net weight

0.363 Kg

Volume

1.778 Liter

EAN

5702428323000

Approval

C UL US LISTED
EAC
LLC CDC TYSK

Balanced port [Yes/No]

Yes

Body material

Brass

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Out of scope

Connection material

Copper

Direction

Straightway

Element temperature max. [°C]

110 °C

Element temperature max. [°F]

230 °F

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Identical product

067N2178

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

5/8 in

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

Orifice capacities [kW]

38 kW

Orifice capacities [TR]

11 TR

Orifice size

11

Outlet connection type

Solder, ODF

Outlet size [in]

1 1/8 in

Packing format

Multi pack

Parts included

Bulb strap

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

12 pc

Rated cap. cond. Range N [IMP]

tcond=100 °F
tevap=40 °F
tliq=98 °F

Rated cap. cond. Range N [SI]

tcond=38 °C
tevap=4.4 °C
tliq=37 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

SCIP dossier no.

d44ec740-dfe8-4c0a-9644-96406f010504

SCIP dossier product name

TGE

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TGE

UK RoHS compliance

Out of scope

UL approved refrigerants

R22
R407C
