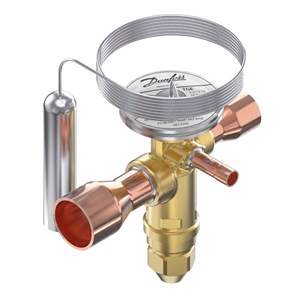

VAN TIẾT LƯU DANFOSS TGE R22/R407C - C/N 067N2013

Gross weight

0.766 Kg

Net weight

0.65 Kg

Volume

2.481 Liter

EAN

5702428138680

Approval

C UL US LISTED
EAC
LLC CDC TYSK

Balanced port [Yes/No]

Yes

Body material

Brass

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Out of scope

Connection material

Copper

Direction

Straightway

Element temperature max. [°C]

110 °C

Element temperature max. [°F]

230 °F

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

EU RoHS compliance

Out of scope

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Identical product

067N2033

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

7/8 in

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

MOP Point [psig]

MOP 100

MOP Point [°C]

15 °C

MOP Point [°F]

60 °F

Orifice capacities [kW]

63 kW

Orifice capacities [TR]

18 TR

Orifice size

20

Outlet connection type

Solder, ODF

Outlet size [in]

1 1/8 in

Packing format

Multi pack

Parts included

Bulb strap

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

8 pc

Rated cap. cond. Range N [IMP]

tcond=100 °F
tevap=40 °F
tliq=98 °F

Rated cap. cond. Range N [SI]

tcond=38 °C
tevap=4.4 °C
tliq=37 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

SCIP dossier no.

d44ec740-dfe8-4c0a-9644-96406f010504

SCIP dossier product name

TGE

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-25 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-15 °F

Type

TGE

UK RoHS compliance

Out of scope

UL approved refrigerants

R22
R407C
