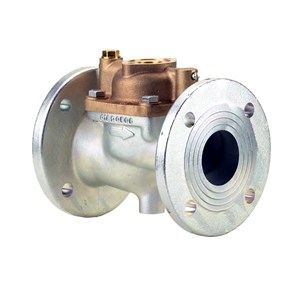

THÂN VAN DANFOSS WWVH 4IN - C/N 016D5100

Mã sản phẩm: 016D5100

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

THÂN VAN DANFOSS WWVH 4IN - C/N 016D5100

Product details

Approval	EAC / LLC CDC TYSK / PED / RoHS / RoHS China
Body material	Cast iron
Connection size [in]	4 in
Connection type	Weld flange
Differential pressure [bar] [max]	4 bar
Differential pressure [bar] [min]	0.3 bar
Differential pressure [psi] [max]	58 psi
Differential pressure [psi] [min]	4.3 psi
In scope of WEEE and contain batteries	No
Kv value [m³/h]	125 m³/h
Max. test pressure [bar] Pe	16 bar
Max. test pressure [psig]	232 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media	Neutral media
Medium temperature range [°C] [max]	90 °C
Medium temperature range [°C] [min]	-25 °C
Medium temperature range [°F] [max]	194 °F
Medium temperature range [°F] [min]	-13 °F
Orifice size [mm]	100 mm
Orifice size fraction [in]	4 in
Packing format	Multi pack
Parts included	Flange bolts / Flange gaskets / Screws for pilot valve / Valve body
Parts Program name	WVS / WVTS
Product accessories	Flanges / Generic accessories
Product group	Water regulating valves
Product Name Description	Valve body for water reg.valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	f7d782f1-04df-4c40-bfe2-ea3a06dce79f
SCIP dossier product name	WVS/WVTS
Serviceable	Water valve spare parts
Type	WVH
Used for product	WVS 100 / WVTS 100
