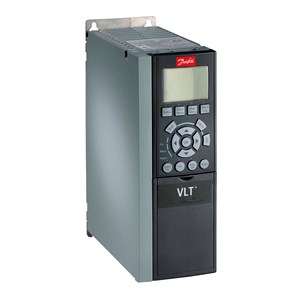

Biến tần Danfoss VLT Automation Drive FC-302 1.5KW - C/N 131B7986

Gross weight

5.9 kg

Net weight

5.6 kg

Volume

22.04 l

EAN

5702427364998

Matr grp for sales restriction

0001

No grouping

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P1K5

(P1K5) 1.5 KW / 2.0 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

N

Numerical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

C4

MCO-305 ( SyncPos)

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-302P1K5T5E20H2XNC

Typecode Part 2

XXXSXXXXAXBXC4XXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

1.5

Height [mm]

268,0

Width w/ no C options [mm]

90,0

Depth [mm]

205,0

Depth with Option A/B [mm]

220,0

kVA

2.84

Power Loss HO [W]

62

Power Loss HO [W]

62

Continuous Current (HO) [A]

4.1

Intermittent Current (HO) [A]

6.56

Continuous Current (HO) [A]

3.4

Intermittent Current (HO) [A]

5.44

Calculated Gross Weight [kg]

4.9

Calculated Net Weight [kg]

4.6

Material Gross Weight

5.9

Material Net Weight

5.6

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P1K5T5E20H2XNC

Modelcode02

XXXSXXXXAXBXC4XXXDX
