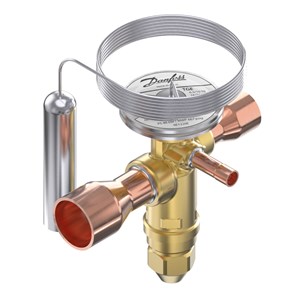

Van tiết lưu Danfoss TGE R22/R407C - C/N 067N2165

Gross weight

1.13 Kg

Net weight

1.003 Kg

Volume

3.393 Liter

EAN

5702428139502

Approval

C UL US LISTED / EAC / LLC CDC TYSK / CE / UKCA

Balanced port [Yes/No]

Yes

Body material

Brass

Capillary tube length [in]

118 in

Capillary tube length [mm]

3000 mm

Connection material

Copper

Direction

Straightway

Element temperature max. [°C]

110 °C

Element temperature max. [°F]

230 °F

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

Flow direction

Bi-flow

Flow direction indicator

Embossed 1-way arrow

Identical product

067N2185

Inlet connection type

Solder, ODF

Inlet size [in]

7/8 in

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

711 psig

Orifice capacities [kW]

92 kW

Orifice capacities [TR]

26 TR

Orifice size

26

Outlet connection type

Solder, ODF

Outlet size [in]

1 3/8 in

Packing format

Multi pack

Parts included

Bulb strap

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

6 pc

Rated cap. cond. Range N [IMP]

tcond=100 °F / tevap=40 °F / tliq=98 °F

Rated cap. cond. Range N [SI]

tcond=38 °C / tevap=4.4 °C / tliq=37 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R22/R407C

SCIP dossier no.

d44ec740-dfe8-4c0a-9644-96406f010504

SCIP dossier product name

TGE

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TGE

UL approved refrigerants

R22 / R407C
