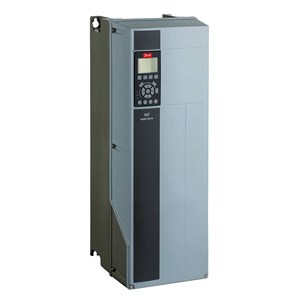

BIẾN TẦN DANFOSS VLT® AutomationDrive FC-302 15KW - C/N 135N6240

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P15K

(P15K) 15 KW / 20 HP

Phase

T

Three phase

Mains Voltage

7

525 - 690 VAC *

Possible rating issue

WARN01

Possible Rating Issue:

Enclosure

P55

IP55 / Type12 Backplate

RFI Filter

H5

Marine,ruggedis RFI A2(C3)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

O

Metric thread cable entry

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

R

MCB-113 Ext. Relay Card

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

B2

B2

Typecode Part 1

FC-302P15KT7P55H5XGC

Typecode Part 2

XOXSXXXXAXBXCXRXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

15

Power 110% (NO) [KW]

18.5

Height [mm]

650,0

Width w/ no C options [mm]

242,0

Depth [mm]

260,0

Depth with Option A/B [mm]

260,0

kVA

21.5

Power Loss NO [W]

300

Power Loss NO [W]

300

Power Loss HO [W]

220

Power Loss HO [W]

220

Continuous Current (NO) [A]

23

Intermittent Current (NO) [A]

25.3

Continuous Current (NO) [A]

22

Intermittent Current (NO) [A]

24.2

Continuous Current (HO) [A]

19

Intermittent Current (HO) [A]

30.4

Continuous Current (HO) [A]

18

Intermittent Current (HO) [A]

28.8

Calculated Gross Weight [kg]

28

Calculated Net Weight [kg]

27.7

Material Gross Weight

28.3

Material Net Weight

28

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P15KT7P55H5XGC

Modelcode02

XOXSXXXXAXBXCXRXXDX
