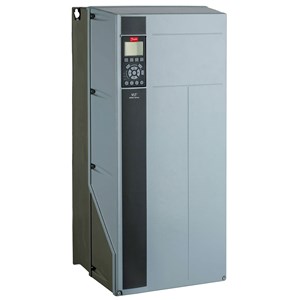

BIẾN TẦN DANFOSS VLT® AutomationDrive FC-302 45KW - C/N 135N6235

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P45K

(P45K) 45 KW / 60 HP

Phase

T

Three phase

Mains Voltage

7

525 - 690 VAC *

Possible rating issue

WARN01

Possible Rating Issue:

Enclosure

P55

IP55 / Type12 Backplate

RFI Filter

H5

Marine,ruggedis RFI A2(C3)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

R

MCB-113 Ext. Relay Card

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

C2

C2

Typecode Part 1

FC-302P45KT7P55H5XGC

Typecode Part 2

XXXSXXXXAXBXCXRXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

45

Power 110% (NO) [KW]

55

Height [mm]

770,0

Width w/ no C options [mm]

370,0

Depth [mm]

335,0

Depth with Option A/B [mm]

335,0

kVA

62.1

Power Loss NO [W]

1100

Power Loss NO [W]

1100

Power Loss HO [W]

900

Power Loss HO [W]

900

Continuous Current (NO) [A]

65

Intermittent Current (NO) [A]

71.5

Continuous Current (NO) [A]

62

Intermittent Current (NO) [A]

68.2

Continuous Current (HO) [A]

54

Intermittent Current (HO) [A]

81

Continuous Current (HO) [A]

52

Intermittent Current (HO) [A]

78

Calculated Gross Weight [kg]

61.3

Calculated Net Weight [kg]

61

Material Gross Weight

67.3

Material Net Weight

67

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P45KT7P55H5XGC

Modelcode02

XXXSXXXXAXBXCXRXXDX
