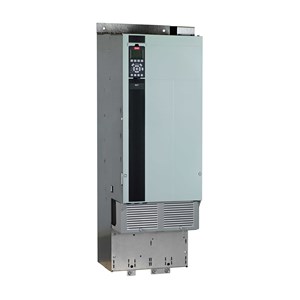

BIẾN TẦN DANFOSS VLT® AutomationDrive FC-302 200KW - C/N 134F6750

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

N200

(N200) 200 KW / 300 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H4

RFI class A1 (C2)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A0

PROFIBUS DP MCA 101

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

D4H

D4H

Typecode Part 1

FC-302N200T5E20H4XGC

Typecode Part 2

XXXSXXXXA0BXCXXXXDX

Product Catalog

GLBL

Global (Standard)

Power 150% (HO) [KW]

200

Power 110% (NO) [KW]

250

Height [mm]

1122,0

Height w/ Regen/Loadshare [mm]

1268,0

Width w/ no C options [mm]

350,0

Depth [mm]

375,0

Depth with Option A/B [mm]

375,0

kVA

274

Power Loss NO [W]

5137

Power Loss NO [W]

4566

Power Loss HO [W]

4039

Power Loss HO [W]

3575

Continuous Current (NO) [A]

480

Intermittent Current (NO) [A]

528

Continuous Current (NO) [A]

443

Intermittent Current (NO) [A]

487

Continuous Current (HO) [A]

395

Intermittent Current (HO) [A]

592

Continuous Current (HO) [A]

361

Intermittent Current (HO) [A]

542

Calculated Gross Weight [kg]

125.3

Calculated Net Weight [kg]

125

Material Gross Weight

122

Material Net Weight

107

Plant from Orderline

B901

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-302N200T5E20H4XGC

Modelcode02

XXXSXXXXA0BXCXXXXDX
