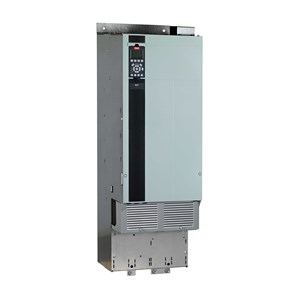

BIẾN TẦN DANFOSS VLT® AutomationDrive FC-302 90KW - C/N 134G2308

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

N90K

(N90K) 90 KW / 125 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E21

IP21 / Type 1

RFI Filter

H4

RFI class A1 (C2)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A0

PROFIBUS DP MCA 101

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

D0

MCB-107 24V DC backup

Frame Size

D1H

D1H

Typecode Part 1

FC-302N90KT5E21H4XGC

Typecode Part 2

XXXSXXXXA0BXCXXXXD0

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

90

Power 110% (NO) [KW]

110

Height [mm]

901,0

Width w/ no C options [mm]

325,0

Depth [mm]

378,0

Depth with Option A/B [mm]

378,0

kVA

123

Power Loss NO [W]

2559

Power Loss NO [W]

2261

Power Loss HO [W]

2031

Power Loss HO [W]

1828

Continuous Current (NO) [A]

212

Intermittent Current (NO) [A]

233

Continuous Current (NO) [A]

190

Intermittent Current (NO) [A]

209

Continuous Current (HO) [A]

177

Intermittent Current (HO) [A]

266

Continuous Current (HO) [A]

160

Intermittent Current (HO) [A]

240

Calculated Gross Weight [kg]

62.3

Calculated Net Weight [kg]

62

Material Gross Weight

78

Material Net Weight

73

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-302N90KT5E21H4XGC

Modelcode02

XXXSXXXXA0BXCXXXXD0
