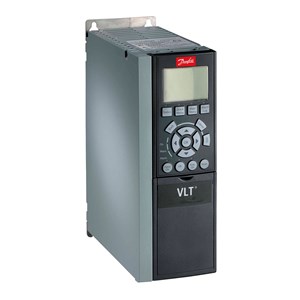

BIẾN TẦN DANFOSS VLT® AutomationDrive FC-301 0.55KW - C/N 131B1262

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

301

301

Power Rating

PK55

0.55 KW / 0.75 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

N

Numerical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-301PK55T4E20H2XNX

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

0.55

Height [mm]

268,0

Width w/ no C options [mm]

90,0

Depth [mm]

205,0

Depth with Option A/B [mm]

220,0

kVA

1.25

Power Loss HO [W]

42

Power Loss HO [W]

42

Continuous Current (HO) [A]

1.8

Intermittent Current (HO) [A]

2.88

Continuous Current (HO) [A]

1.6

Intermittent Current (HO) [A]

2.56

Calculated Gross Weight [kg]

4.8

Calculated Net Weight [kg]

4.5

Material Gross Weight

4.7

Material Net Weight

4.7

Vendor

ERR01

Cannot Determine Vendor

Modelcode01

FC-301PK55T4E20H2XNX

Modelcode02

XXXSXXXXAXBXCXXXXDX
