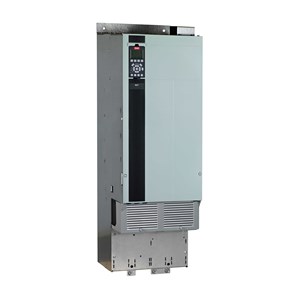

BIẾN TẦN DANFOSS VLT® AQUA Drive FC-202 160KW - C/N 132H5964

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AQUA Drive FC-

Series

202

202

Power Rating

N160

(N160) 160 KW / 250 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

LXX1

Cascade controller 2.0

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

D3H

D3H

Typecode Part 1

FC-202N160T4E20H2XGC

Typecode Part 2

XXXLXX1XAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

132

Power 110% (NO) [KW]

160

Height [mm]

909,0

Height w/ Regen/Loadshare [mm]

1004,0

Width w/ no C options [mm]

250,0

Depth [mm]

375,0

Depth with Option A/B [mm]

375,0

kVA

218

Continuous Current (NO) [A]

315

Intermittent Current (NO) [A]

346

Continuous Current (NO) [A]

302

Intermittent Current (NO) [A]

332

Continuous Current (HO) [A]

260

Intermittent Current (HO) [A]

390

Continuous Current (HO) [A]

240

Intermittent Current (HO) [A]

360

Calculated Gross Weight [kg]

62.3

Calculated Net Weight [kg]

62

Material Gross Weight

79

Material Net Weight

74

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-202N160T4E20H2XGC

Modelcode02

XXXLXX1XAXBXCXXXXDX
