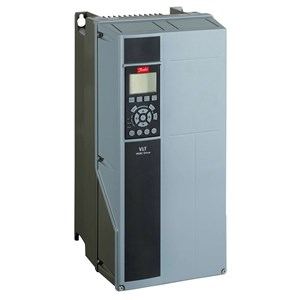

BIẾN TẦN DANFOSS VLT® AQUA Drive FC-202 18.5KW - C/N 131B9017

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AQUA Drive FC-

Series

202

202

Power Rating

P18K

(P18K) 18.5 KW / 25 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E66

(E66) IP66 / NEMA 4X

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

B1

B1

Typecode Part 1

FC-202P18KT4E66H2XGX

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

15

Power 110% (NO) [KW]

18.5

Height [mm]

480,0

Width w/ no C options [mm]

242,0

Depth [mm]

260,0

Depth with Option A/B [mm]

260,0

kVA

26

Power Loss NO [W]

465

Power Loss NO [W]

465

Power Loss HO [W]

379

Power Loss HO [W]

379

Continuous Current (NO) [A]

37.5

Intermittent Current (NO) [A]

41.2

Continuous Current (NO) [A]

34

Intermittent Current (NO) [A]

37.4

Continuous Current (HO) [A]

32

Intermittent Current (HO) [A]

51.2

Continuous Current (HO) [A]

27

Intermittent Current (HO) [A]

43.2

Calculated Gross Weight [kg]

22.4

Calculated Net Weight [kg]

22.1

Material Gross Weight

21.45

Material Net Weight

20.5

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-202P18KT4E66H2XGX

Modelcode02

XXXSXXXXAXBXCXXXXDX
