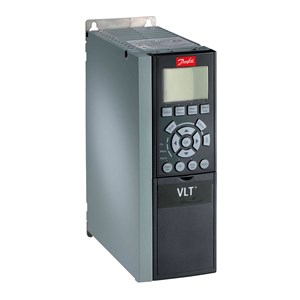

BIẾN TẤN DANFOSS VLT® AQUA Drive FC-202 1.1KW - C/N 134G1757

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AQUA Drive FC-

Series

202

202

Power Rating

P1K1

(P1K1) 1.1 KW / 1.5 HP

Phase

T

Three phase

Mains Voltage

4

380 - 480 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

T

Safe Stop

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AL

PROFINET MCA 120

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

D0

MCB-107 24V DC backup

Frame Size

A2

A2

Typecode Part 1

FC-202P1K1T4E20H1TGX

Typecode Part 2

XXXSXXXXALBXCXXXXD0

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

1.1

Power 110% (NO) [KW]

1.1

Height [mm]

268,0

Width w/ no C options [mm]

90,0

Depth [mm]

205,0

Depth with Option A/B [mm]

220,0

kVA

2.08

Power Loss NO [W]

58

Power Loss NO [W]

58

Power Loss HO [W]

58

Power Loss HO [W]

58

Continuous Current (NO) [A]

3

Intermittent Current (NO) [A]

3.3

Continuous Current (NO) [A]

2.7

Intermittent Current (NO) [A]

2.97

Continuous Current (HO) [A]

3

Intermittent Current (HO) [A]

4.5

Continuous Current (HO) [A]

2.7

Intermittent Current (HO) [A]

4.05

Calculated Gross Weight [kg]

4.9

Calculated Net Weight [kg]

4.6

Material Gross Weight

5.34

Material Net Weight

4.75

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-202P1K1T4E20H1TGX

Modelcode02

XXXSXXXXALBXCXXXXD0
