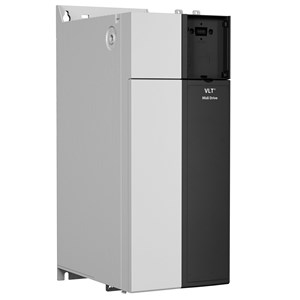

BIẾN TẦN DANFOSS VLT® Midi Drive FC-280 22KW - C/N 134U7741

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® Midi Drive FC-

Series

280

280

Power Size

P22K

22 kW / 30 HP

Voltage

T4

Three phase 380-480 VAC

Enclosure

E20

IP20 / Chassis

RFI Filter

H1

EMC Cat C1(200V)/C2(400V)

Brake & Stop

B

Brake chopper

Display

X

No display

Coating

C

Coated PCB

Mains Option

X

No mains options

Adaptation A

X

No Adaption

Adaptation B

X

No Adaption

Special Version

SXXX

Latest release

Software Language Pack

X

Standard language pack

Control Card

AL

Integrated PROFINET

Frame Size

K5

K5

Typecode Part 1

FC-280P22KT4E20H1BXC

Typecode Part 2

XXXSXXXXAL

Product Catalog

NO_VIEW

NO VIEW

Calculated Gross Weight [kg]

11.8

Calculated Net Weight [kg]

11.5

Material Gross Weight

12.82

Material Net Weight

11.68

Intermittent Current (HO) [A]

63.8

Intermittent Current (HO) [A]

63.8

Continuous Current (HO) [A]

42.5

Continuous Current (HO) [A]

40

Power Loss HO [W]

467.5

kVA

29.5

Power 160% (HO) [KW]

22

Height [mm]

410

Width w/ no C options [mm]

150

Depth [mm]

245

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-280P22KT4E20H1BXC

Modelcode02

XXXSXXXXAL
