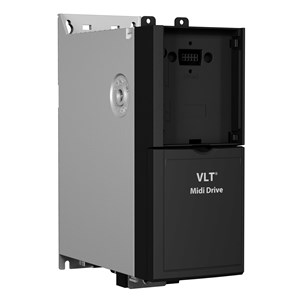

BIẾN TẦN DANFOSS VLT® Midi Drive FC-280 2.2KW - C/N 134U7732

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® Midi Drive FC-

Series

280

280

Power Size

P2K2

2.2 kW / 3.0 HP

Voltage

T4

Three phase 380-480 VAC

Enclosure

E20

IP20 / Chassis

RFI Filter

H1

EMC Cat C1(200V)/C2(400V)

Brake & Stop

B

Brake chopper

Display

X

No display

Coating

C

Coated PCB

Mains Option

X

No mains options

Adaptation A

X

No Adaption

Adaptation B

X

No Adaption

Special Version

SXXX

Latest release

Software Language Pack

X

Standard language pack

Control Card

AL

Integrated PROFINET

Frame Size

K1

K1

Typecode Part 1

FC-280P2K2T4E20H1BXC

Typecode Part 2

XXXSXXXXAL

Product Catalog

NO_VIEW

NO VIEW

Calculated Gross Weight [kg]

2.8

Calculated Net Weight [kg]

2.5

Material Gross Weight

3.28

Material Net Weight

2.85

Intermittent Current (HO) [A]

8.5

Intermittent Current (HO) [A]

8.5

Continuous Current (HO) [A]

5.3

Continuous Current (HO) [A]

4.8

Power Loss HO [W]

74

kVA

3.7

Power 160% (HO) [KW]

2.2

Height [mm]

210

Width w/ no C options [mm]

75

Depth [mm]

168

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-280P2K2T4E20H1BXC

Modelcode02

XXXSXXXXAL
