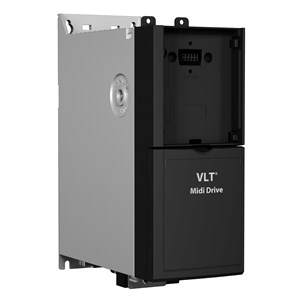

BIẾN TẦN DANFOSS VLT® Midi Drive FC-280 0.55KW - C/N 134X3071

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® Midi Drive FC-

Series

280

280

Power Size

PK55

0.55 kW / 0.75 HP

Voltage

S2

Single phase 200-240 VAC

Enclosure

E20

IP20 / Chassis

RFI Filter

H1

EMC Cat C1(200V)/C2(400V)

Brake & Stop

X

No Brake chopper

Display

X

No display

Coating

C

Coated PCB

Mains Option

X

No mains options

Adaptation A

X

No Adaption

Adaptation B

X

No Adaption

Special Version

SXXX

Latest release

Software Language Pack

X

Standard language pack

Control Card

AL

Integrated PROFINET

Frame Size

K1

K1

Typecode Part 1

FC-280PK55S2E20H1XXC

Typecode Part 2

XXXSXXXXAL

Product Catalog

NO_VIEW

NO VIEW

Calculated Gross Weight [kg]

2.8

Calculated Net Weight [kg]

2.5

Material Gross Weight

3.23

Material Net Weight

2.8

Intermittent Current (HO) [A]

5.1

Continuous Current (HO) [A]

3.2

Power Loss HO [W]

46.2

kVA

1.3

Power 160% (HO) [KW]

0.55

Height [mm]

210

Width w/ no C options [mm]

75

Depth [mm]

168

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-280PK55S2E20H1XXC

Modelcode02

XXXSXXXXAL
