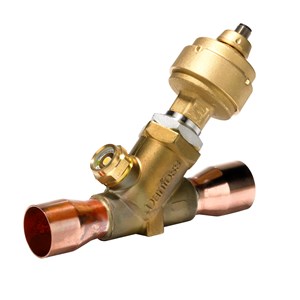

VAN TIẾT LƯU DANFOSS ETS-250 -C/N 034G2601

Gross weight

2.32 kg

Net weight

1.64 kg

EAN

5702428826310

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CE; EAC; LLC CDC TYSK; UL; UKCA

Balanced port [Yes/No]

Yes

Compatible Danfoss controllers

EKE 1A; EKE 1B; EKE 1C

Connection material

Copper

Connection type

Solder, ODF

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

Flow direction

Bi-flow

Fluid Group

2

Full travel time speed [s] [Max]

25.4 "

Full travel time speed [s] [Min]

12.7 "

Inlet connection type

Solder ODF

Inlet size [in]

1 3/8 in

Lubricants compatibility

All ester oils; All mineral oils

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

1.3 W

Max tot PowerCons VoltDrive[W]

5.5 W

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

493 psig

MaxOPD [bar]

33 bar

MaxOPD [psi]

478.6 psi

MaxOPD reverse [bar]

10 bar

MaxOPD reverse [psi]

145 psi

Motor type

Bi-polar

Outlet connection type

Solder ODF

Outlet size [in]

1 3/8 in

Packing format

Single pack

PED category

I

Phase current (peak) [mA]

141 mA

Phase current (RMS) [mA]

100 mA

Phase inductance [µH]

85000 µH

Product accessories

Stepper valve accessories

Product family name

ETS

Product group

Expansion valves

Product name

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated cap. R404A/R507A [kW]

828 kW

Rated cap. R404A/R507A [TR]

239 tons

Rated capacity R134a [kW]

874 kW

Rated capacity R134a [TR]

252 tons

Rated capacity R22 [kW]

1106 kW

Rated capacity R22 [TR]

319 tons

Rated capacity R407C [kW]

1212 kW

Rated capacity R407C [TR]

349 tons

REACH Candidate List substances >0.1%

Cobalt dichloride (CAS no. 7646-79-9)
Lead (CAS no. 7439-92-1)

Refrigerant oil compatibility

All ester oils; All mineral oils

Refrigerant temperature [ºC] [Max]

65 °C

Refrigerant temperature [ºC] [Min]

-40 °C

Refrigerant temperature [ºF] [Max]

150 °F

Refrigerant temperature [ºF] [Min]

-40 °F

Refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R513A
R407H
R417A
R422A
R442A
R449B
R463A
R513B
R515A
R515B
R1234ze(E)
R507A

Resistance [kOhm]

0.0524 kOhm

Serviceable

Stepper valve spare parts

Sightglass

Yes

Step mode

2-phase full step

Total steps

3810 (full steps)

Type

ETS 250

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A

Voltage [V] DC [Max]

13.8 V

Voltage [V] DC [Min]

11.5 V
