VAN TIẾT LƯU DANFOSS TUBE R410A - C/N 068U1952

Mã sản phẩm: 068U1952

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

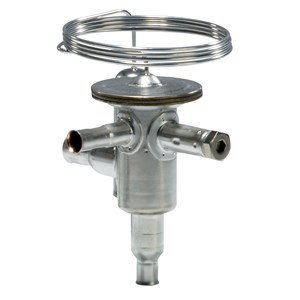

VAN TIẾT LƯU DANFOSS TUBE R410A - C/N 068U1952

Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 4.50, Orifice capacities [TR]: 1.30, Pressure equalization: Externally equalized

Approval	EAC, LLC CDC TYSK, UL
Body material	Stainless steel
Capillary tube length [in]	31 in
Capillary tube length [mm]	800 mm
Connection material	Bi-metal: Steel/copper
Direction	Angleway
Equalization connection type	SOLDER, ODF
Equalization size [mm]	6 mm
Flow direction	Bi-flow
Flow direction indicator	Laser engraved 1-way arrow
Fluid Group	2
Inlet connection type	SOLDER, ODF
Inlet size [mm]	6 mm
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
Orifice capacities [kW]	4.5 kW
Orifice capacities [TR]	1.3 tons
Orifice size	4
Outlet connection type	SOLDER, ODF
Outlet size [mm]	12 mm
Packing format	Multi pack
Parts included	Bulb strap
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product family name	TU/TC
Product group	Expansion valves
Product name	Thermostatic expansion valve
Quantity per packing format	24 pc
Rated cap. cond. Range N [IMP]	OS=7.2 ºF, tcond=100 ºF, tevap=40 ºF, tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4K, tcond=38 ºC, tevap=4.4 ºC, tliq=37 ºC
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R410A
Serviceable	No
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [Max]	10 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	50 °F
Temperature range [°F] [Min]	-40 °F
Type	TUBE
UL approved refrigerants	R410A
