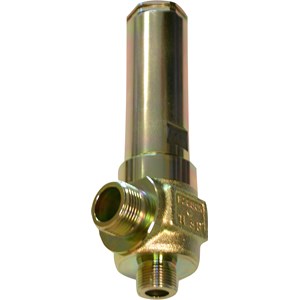

VAN AN TOÀN DANFOSS SFA15 16BAR - C/N 148F3216

Gross weight

2 kg

Net weight

1.93 kg

EAN

5702428194105

Approval

CE, EAC, TS, UKCA

Approval file name

TÜV.SV.19-1104.13.D/G.0,73.p

Category

IV

Certified Coef of Disc

0.73 kg

Comments

0

Connection Internal/External

External

Connection size [in]

1/2 in

Connection size [mm]

15 mm

Connection standard

ISO 228-1

Connection type

G

Direction

Angleway

Equipment

Flow area [in2]

0.206 in²

Flow area [mm2]

133 mm²

Flow diameter [in]

0.512 in

Flow diameter [mm]

13 mm

Fluid Group

1

Inlet connection size [in]

3/4

Lift [mm]

4.8 mm

Nominal diameter

DN < 15

Outlet connection size [in]

1

Packing format

Single pack

PED category

IV

Pressure certificate

Danfoss certificate included

Pressure setting [bar]

16 bar

Pressure setting [psig]

232 psig

Product description

Safety Relief Valve

Product group

Safety relief valves

Product name

Safety relief valve

Quantity per packing format

1 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R170
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R600
R600a
R717
R744
R507A
R1233zd(E)
R1234yf
R1234ze(E)
R125
R152a
R227ea
R236fa
R245fa
R290
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R452C
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A

Temperature range [°C] [Max]

100 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

212 °F

Temperature range [°F] [Min]

-58 °F

Type

SFA 15
