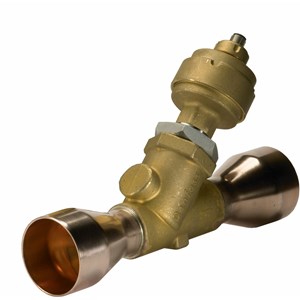

VAN DANFOSS KVS 42 - C/N 034G2850

Gross weight

2.28 kg

Net weight

1.58 kg

EAN

5702428826242

Ambient temperature range [°C] [Max]

60 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

140 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

CE, EAC, LLC CDC TYSK, UKCA

Balanced port [Yes/No]

Yes

Category

I

Compatible Danfoss controllers

EKC 368, EKE 1A, EKE 1B, EKE 1C

Connection material

Copper

Connection type

Solder, ODF

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

Flow direction

Bi-flow

Fluid Group

2

Full travel time speed [s] [Max]

25.4 "

Full travel time speed [s] [Min]

12.7 "

Inlet connection type

Solder ODF

Inlet size [in]

1 1/8 in

Inlet size [mm]

28 mm

Lubricants compatibility

All ester oils, All mineral oils

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

1.3 W

Max tot PowerCons VoltDrive[W]

5.5 W

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

493 psig

MaxOPD [bar]

33 bar

MaxOPD [psi]

478.6 psi

MaxOPD reverse [bar]

10 bar

MaxOPD reverse [psi]

145 psi

MOPD[bar/psi]

33 BAR (478.6 PSI)

Motor type

Bi-polar

Outlet connection type

Solder ODF

Outlet size [in]

1 1/8 in

Outlet size [mm]

28 mm

Packing format

Single pack

PED category

I

Phase current (peak) [mA]

141 mA

Phase current (RMS) [mA]

100 mA

Phase inductance [µH]

85000 µH

Product accessories

Stepper valve accessories

Product family name

KVS

Product group

Press. and temp. regul. valves

Product name

Electric regulating valve

Quantity per packing format

1 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

Delta p=2.9 psig, tcond=77 °F, tevap=14 °F

Rated cap. conditions [SI]

Delta p=0.2 bar, tcond=25 °C, tevap=-10 °C

Rated cap. R404A/R507A [kW]

35.3 kW

Rated cap. R404A/R507A [TR]

10 tons

Rated capacity R134a [kW]

29.3 kW

Rated capacity R134a [TR]

8.3 tons

Rated capacity R22 [kW]

40.4 kW

Rated capacity R22 [TR]

11.4 tons

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerant oil compatibility

All ester oils, All mineral oils

Refrigerant temperature [ºC] [Max]

65 °C

Refrigerant temperature [ºC] [Min]

-40 °C

Refrigerant temperature [ºF] [Max]

150 °F

Refrigerant temperature [ºF] [Min]

-40 °F

Refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R513A
R1234ze(E)
R507A

Resistance [kOhm]

0.0524 kOhm

Serviceable

Stepper valve spare parts

Step mode

2-phase full step

Total steps

3810 (full steps)

Type

KVS 42

Voltage [V] DC [Max]

13.8 V

Voltage [V] DC [Min]

11.5 V
