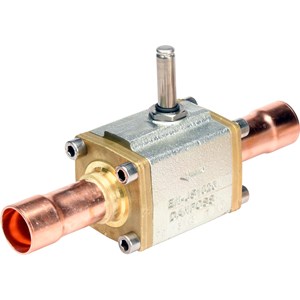

VAN ĐIỆN TỪ DANFOSS EVR 40 (NC HÀN 54MM) - C/N 032L1112

Mã sản phẩm: 032L1112

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỆN TỪ DANFOSS EVR 40 (NC HÀN 54MM) - C/N 032L1112

Kv value [m³/h]: 24.200, Manual operation option: No, Packing format: Single pack

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Approval	UL - EAC - LLC CDC EURO-TYSK
Coil	No
Cv value [gal/min]	28 gal/min
Direction	Straightway
Function	NC
Inlet connection type	SOLDER, ODF
Inlet size [in]	2 1/8 in
Kv value [m³/h]	24.2 m³/h
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[bar] 20W DC	17 bar
MaxOPD[bar] coil BJ/BX	31 bar
MaxOPD[psi] 10W AC	550 psi
MaxOPD[psi] 20W DC	246 psi
MaxOPD[psi] coil BJ/BX	450 psi
Medium temperature range [°C] [Max]	105 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	221 °F
Medium temperature range [°F] [Min]	-40 °F
MinODP [bar]	0.2 bar
MinODP [psi]	2.9 psi
MOPD[bar/psi]	COIL DEPENDEND
Orifice size [mm]	25.4 mm
Outlet connection type	SOLDER, ODF
Outlet size [in]	2 1/8 in
Packing format	Single pack
Parts Program name	EVR
Product accessories	Solenoid valve accessories
Product family name	EVR v2
Product group	Solenoid valves
Product name	Solenoid valve
Quantity per packing format	1 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Refrigerants	R125 R134a R152a R22 R404A R407A R407C R407F R410A R448A R449A R450A R452A R513A R1234ze(E) R507A
Serviceable	Solenoid valve spare parts
Type	EVR 40
Type designation	Solenoid valve, Solder
UL approved refrigerants	R125 R134a R152a R22 R404A R407A R407C R407F R410A R448A R449A R450A R452A R507A R513A
Valve operation	SERVO-PISTON
