PHỤ TÙNG VAN DANFOSS COIL BE110CS 16W 230V - C/N 018F6730

Mã sản phẩm: 018F6730

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

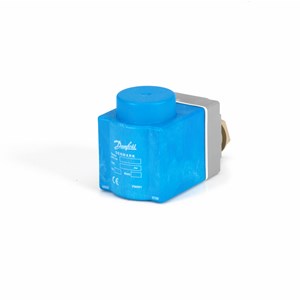

PHỤ TÙNG VAN DANFOSS COIL BE110CS 16W 230V - C/N 018F6730

Electrical connection: Terminal box, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67, Packing format: Multi pack

Actuator size	13.5 mm
Ambient temperature range [°C] [Max]	50 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	120 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK – CE – EAC - UKCA
Cable diameter [mm] [Max]	11 mm
Cable diameter [mm] [Min]	6 mm
Coil connection	Connection box
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	0.75 - 1.5 mm2
Duty rating	Continuous
Electrical connection	Terminal box
Electrical connection size	Pg 13.5
Enclosure rating IP	IP67
Frequency [Hz]	50/60 Hz
Identical product	018F8730
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption 50Hz [VA]	28 VA
Power consumption 60Hz [VA]	22 VA
Power consumption [W] 50Hz	15 W
Power consumption [W] 60Hz	13 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product name	Solenoid coil
Quantity per packing format	32 pc
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [Max]	100 %
Rel. Humidity [% RH] [Min]	0 %
Serviceable	No
Spare part number	018F6192
Supply voltage 50Hz Max [V]	110 V
Supply voltage 60Hz Max [V]	110 V
Supply voltage [V] AC	110 V
Type	BE110CS
Type designation	BE110CS
