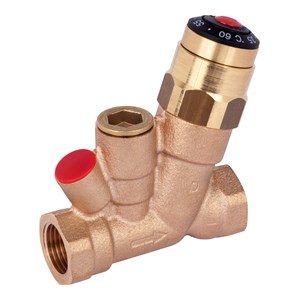

VAN TUẦN HOÀN NHIỆT DANFOSS MTCV DN20 - C/N 003Z4520

Gross weight

0.63 kg

Net weight

0.63 kg

EAN

5710104092119

Approval type

DVGW

Connection types

Internal thread

Description

MTCV DN 20, A version, multifunctional thermostatic circulation valve

Differential pressure over the valve [kPa] [Max]

100 kPa

Disinfection function

No

Factory setting [°C]

50 °C

Kvs values [m³/h]

1.8 m³/h

Media temperature [°C] [Max]

100 °C

Pressure class

PN 10

Product group

Hot water balancing

REACH Candidate List substances >0.1%

Lead

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

35 °C

Type

MTCV

Valve body material

Rg5

Valve size

DN 20

Version

A
