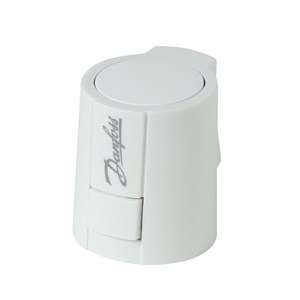

PHỤ TÙNG VAN DANFOSS ABN A5 230V 5MM - C/N 082F1152

Gross weight

0.1 kg

Net weight

0.1 kg

EAN

5702420122236

Approval standard

EC EN 60730
UL 60730

Cable included

No

Compatibility with AB-QM size

DN 10-32

Control signal type

On/off and PWM

De-energized position

Normally closed

Description

ABN A5, 230 V, 5 mm, Normally Closed thermal actuator

IP protection class

IP 54

Label product

Yes

Product group

Thermal actuators

REACH Candidate List substances >0.1%

Lead

SCIP dossier no.

8e26f954-ad08-4e08-a2a5-aa651124456b

SCIP dossier product name

082F1152

Stroke [mm]

5 mm

Supply voltage [V] AC

230 V

Type

ABN A5 On/Off
