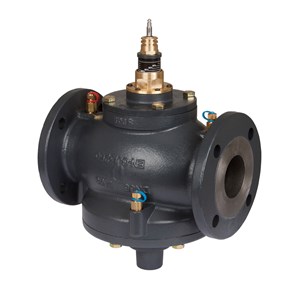

VAN CÂN BẰNG DANFOSS AB-QM DN 65 - C/N 003Z0773
AB-QM DN 65, with three test plugs, pressure independent balancing and control valve
|
Gross weight |
38.6 kg |
|
Net weight |
38.6 kg |
|
EAN |
5710104034089 |
|
Actuator connection |
Danfoss standard |
|
Connection types |
Flange |
|
Description |
AB-QM DN 65, with three test plugs, pressure independent balancing and control valve |
|
Differential pressure [kPa] [Max] |
600 kPa |
|
Flow nominal [m³/h] |
20 m³/h |
|
Flow type |
Normal flow |
|
Media temperature [°C] [Max] |
120 °C |
|
Media temperature [°C] [Min] |
-10 °C |
|
Pressure class |
PN 16 |
|
Product group |
Pressure independent balancing and control valves |
|
REACH Candidate List substances >0.1% |
Lead |
|
Starting pressure [kPa] |
30 kPa |
|
Stroke [mm] |
15 mm |
|
Test plugs |
With test plugs |
|
Type |
AB-QM |
|
Valve body material |
Grey iron (EN-GJL-250) |
|
Valve size |
DN 65 |
|
Version |
AB-QM |
