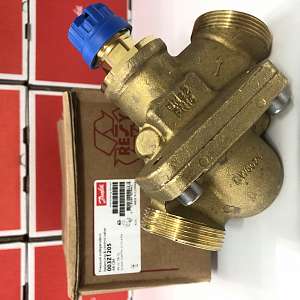

VAN CÂN BẰNG LƯU LƯỢNG TỰ ĐỘNG DANFOSS AB-QM DN32 PN16 - C/N 003Z1205

Mã sản phẩm: 003Z1205

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CÂN BẰNG DANFOSS AB-QM DN32 PN16 - C/N 003Z1205

AB-QM DN 32, without test plugs, pressure independent balancing and control valve

Actuator connection	M30 x 1.5
Connection types	External Thread
Description	AB-QM DN 32, without test plugs, pressure independent balancing and control valve
Differential pressure [kPa] [Max]	600 kPa
Flow nominal [m³/h]	3.2 m³/h
Flow type	Normal flow
Media temperature [°C] [Max]	120 °C
Media temperature [°C] [Min]	-10 °C
Pressure class	PN 16
Product group	Pressure independent balancing and control valves
REACH Candidate List substances >0.1%	Lead (CAS no. 7439-92-1)
SCIP dossier no.	8650187b-c47a-48a1-b569-4d9612a0986b
SCIP dossier product name	AB-QM DN10-32
Starting pressure [kPa]	25 kPa
Stroke [mm]	4.5 mm
Test plugs	Without test plugs
Type	AB-QM
Valve body material	DZR Brass (CW 602N)
Valve size	DN 32
Version	AB-QM
