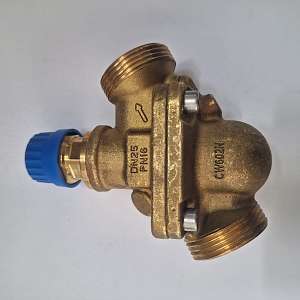

VAN CÂN BẰNG LƯU LƯỢNG TỰ ĐỘNG DANFOSS AB-QM DN 25 PN16 - C/N 003Z1204

Gross weight

1.3 kg

Net weight

1.21 kg

EAN

5710104029849

Actuator connection

M30 x 1.5

Connection types

External Thread

Description

AB-QM DN 25, without test plugs, pressure independent balancing and control valve

Differential pressure [kPa] [Max]

600 kPa

Flow nominal [m³/h]

1.7 m³/h

Flow type

Normal flow

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 16

Product group

Pressure independent balancing and control valves

REACH Candidate List substances >0.1%

Lead

SCIP dossier no.

23b9ccb1-975b-41c7-a605-2e9cf04bb1db

SCIP dossier product name

AB-QM DN25 without measuring nipples

Starting pressure [kPa]

20 kPa

Stroke [mm]

4.5 mm

Test plugs

Without test plugs

Type

AB-QM

Valve body material

DZR Brass (CW 602N)

Valve size

DN 25

Version

AB-QM
