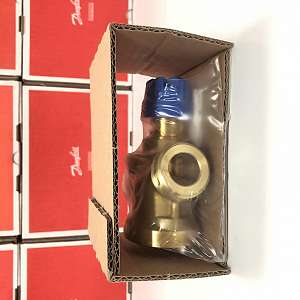

VAN CÂN BẰNG LƯU LƯỢNG TỰ ĐỘNG DANFOSS AB-QM DN 20 PN25 - C/N 003Z8223

Gross weight

0.71 kg

Net weight

0.65 kg

EAN

5714279039559

Actuator connection

M30 x 1.5

Connection types

External Thread

Description

AB-QM DN 20, without test plugs, External thread, PN25, pressure independent balancing and control valve

Differential pressure [kPa] [Max]

600 kPa

Differential pressure [kPa] [Min]

16 kPa

Flow nominal [m³/h]

1.1 m³/h

Flow type

Normal flow

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 25

Product group

Pressure independent balancing and control valves

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b2a642ef-a80a-42a1-a9af-6eb95466dd1d

SCIP dossier product name

AB-QM 10-32 - 4g

Starting pressure [kPa]

16 kPa

Stroke [mm]

4 mm

Test plugs

Without test plugs

Type

AB-QM

Valve body material

DZR Brass (CW 602N)

Valve size

DN 20

Version

AB-QM 4.0
