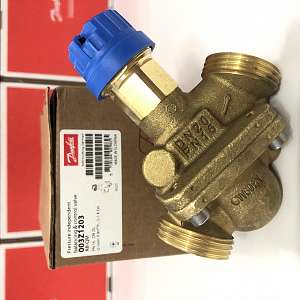

VAN CẦN BẰNG LƯU LƯỢNG TỰ ĐỘNG DANFOSS AB-QM DN20 PN16 - C/N 003Z1203

Mã sản phẩm: 003Z1203

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN CẦN BẰNG DANFOSS AB-QM DN20 PN16 - C/N 003Z1203

AB-QM DN 20, without test plugs, pressure independent balancing and control valve

Actuator connection	M30 x 1.5
Connection types	External Thread
Description	AB-QM DN 20, without test plugs, pressure independent balancing and control valve
Differential pressure [kPa] [Max]	600 kPa
Flow nominal [m³/h]	0.9 m³/h
Flow type	Normal flow
Media temperature [°C] [Max]	120 °C
Media temperature [°C] [Min]	-10 °C
Pressure class	PN 16
Product group	Pressure independent balancing and control valves
REACH Candidate List substances >0.1%	Lead
SCIP dossier no.	0ba523b1-d78a-423b-9067-15e63515e637
SCIP dossier product name	AB-QM DN20 without measuring nipples
Starting pressure [kPa]	16 kPa
Stroke [mm]	2.25 mm
Test plugs	Without test plugs
Type	AB-QM
Valve body material	DZR Brass (CW 602N)
Valve size	DN 20
Version	AB-QM 3.0
