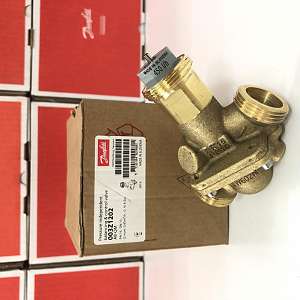

VAN CÂN BẰNG LƯU LƯỢNG TỰ ĐỘNG DANFOSS AB-QM DN15 PN16- C/N 003Z1202

Gross weight

0.46 kg

Net weight

0.46 kg

EAN

5710104029801

Actuator connection

M30 x 1.5

Connection types

External Thread

Description

AB-QM DN 15, without test plugs, pressure independent balancing and control valve

Differential pressure [kPa] [Max]

600 kPa

Flow nominal [m³/h]

0.45 m³/h

Flow type

Normal flow

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 16

Product group

Pressure independent balancing and control valves

REACH Candidate List substances >0.1%

Lead

SCIP dossier no.

091957b6-7413-48b9-bf4b-0e0383eb69a4

SCIP dossier product name

AB-QM DN15 without measuring nipples

Starting pressure [kPa]

16 kPa

Stroke [mm]

2.25 mm

Test plugs

Without test plugs

Type

AB-QM

Valve body material

DZR Brass (CW 602N)

Valve size

DN 15

Version

AB-QM 3.0
