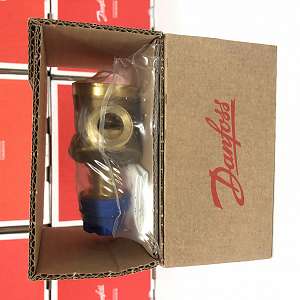

VAN CÂN BẰNG DANFOSS AB-QM DN15 PN25 G3/4 (21MM) - C/N 003Z8221

Gross weight

0.54 kg

Net weight

0.49 kg

EAN

5714279039528

Actuator connection

M30 x 1.5

Connection types

External Thread

Description

AB-QM DN 15, without test plugs, External thread, PN25, pressure independent balancing and control valve

Differential pressure [kPa] [Max]

600 kPa

Differential pressure [kPa] [Min]

16 kPa

Flow nominal [m³/h]

0.65 m³/h

Flow type

Normal flow

Media temperature [°C] [Max]

95 °C

Media temperature [°C] [Min]

-10 °C

Pressure class

PN 25

Product group

Pressure independent balancing and control valves

REACH Candidate List substances >0.1%

Lead

SCIP dossier no.

9f0e486a-294f-4112-8d82-86cefd3b2be3

SCIP dossier product name

AB-QM DN 15 w/o TP. Ext.

Starting pressure [kPa]

16 kPa

Stroke [mm]

4 mm

Test plugs

Without test plugs

Type

AB-QM

Valve body material

DZR Brass (CW 602N)

Valve size

DN 15

Version

AB-QM 4.0
