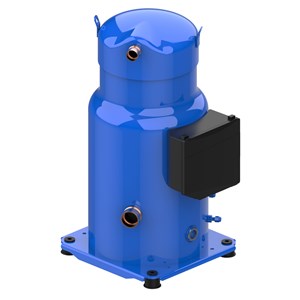

MÁY NÉN DANFOSS SM185S4CC - C/N SM185-4CAM

Gross weight

104.2 kg

Net weight

100 kg

EAN

5702428046640

Approval standard

CE
UL

Brand technique

Scroll compressor

Capacity control

Fixed speed

CC Model Number

SM185S4CC

Colour

Blue

Compressor power supply [V/Ph/Hz]

380-400/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Description

SM185-4

Diameter [mm]

317 mm

Discharge connection height [mm]

643 mm

Discharge connection pipe size [in]

1 1/8 in

Discharge connection size [in]

1 1/8 in

Drawing number

8551056c

Economizer

No

Factory HP [bar]

33 bar

Factory LP [bar]

25 bar

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

Schrader

Generation code

C

Glass mounting

Threaded

Glass torque [Nm]

50 Nm

GP LP torque [Nm]

15 Nm

High side max pressure (Ps)

30.2 bar

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

2.5 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

IP protection class

IP54 (with cable gland)

Low side max pressure (Ps)

25 bar

Low Side TS Max

63 °C

Low Side TS Min

-35 °C

Low Side Volume

31.2 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

175 A

Maximum Operating Current [MOC]

35 A

MMT

35 A

Model number

SM185S4CC

Motor protection

Internal thermostat, ext. overload protector needed

Mounting torque [Nm]

21 Nm

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Nominal cooling capacity 60 kBTU/h

185.32 kBtu/h

Nominal cooling capacity at 50Hz

41.1 kW

Nominal cooling capacity at 60Hz

54.3 kW

Number of starts per hour [Max]

12

Oil charge [L]

6.2 L

Oil drain

1/4'' flare

Oil drain torque [Nm]

35 Nm

Oil equalization

3/8'' flare SAE

Oil equalization torque [Nm]

48 Nm

Oil reference

160P

Oil type

Mineral

Packaging height [mm]

877 mm

Packaging length [mm]

1140 mm

Packaging weight [Kg]

648 kg

Packaging width [mm]

950 mm

Packing format

Industrial pack

Packing quantity

6

Phase

3

Power connections

Screw 4.8 mm

Quantity per packing format

6 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Refrigerant

R22

Refrigerant charge [kg] [Max]

13.5 kg

Relief valve

None

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

180 mm

Suction connection pipe size [in]

1 5/8 in

Suction connection size [in]

1 5/8 in

Swept volume [cm3]

249.9 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 Nm

Torque Ebox cover [Nm]

2.3 Nm

Torque power [Nm]

3 Nm

Total height [mm]

678 mm

Type

SM

Type designation

Compressor

Viscosity [cP]

32 cP

Winding resistance for three-phase compressors with identical windings [Ohm]

0.77 Ohm
