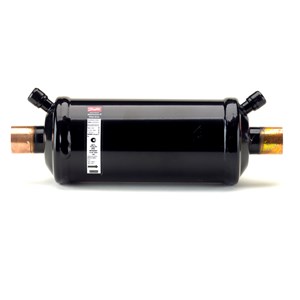

THIẾT BỊ LỌC DANFOSS DAS 390S VV - C/N 023Z1016

Gross weight

1.52 kg

Net weight

1.42 kg

EAN

5702428160377

Acid capacity [g]

17.29 g

Acid capacity [oz]

0.61 oz

Activated alum/Molec sieve [%]

70% / 30%

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

Category

Art. 3, par. 3

Connection material

Copper

Connection notes

Schraeder Inlet / Outlet

Core

Solid core

Core Size code

30 cu.in.

Flow capacity [kW]

R134a: 20.0
R404A: 27.0
R407C: 31.0
R410A: 31.0
R507: 27.0

Flow capacity [TR]

R134a: 5.7
R404A: 7.7
R407C: 8.8
R410A: 8.8
R507: 7.7

Flow direction indicator

Label printed 1-way arrow

FlowCap Cond (ARI 730-05)[IMP]

Delta p=3PSI
tevap=40°F

FlowCap Cond (ARI 730-05)[SI]

Delta p=0.21bar
tevap=4°C

Fluid Group

2

Inlet 1 connection size [in]

1 1/8 in

Inlet connection type

SOLDER, ODF

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

508 psig

Net volume [foz US]

15.68 oz

Net volume [l]

0.464 L

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515A

Outlet 1 connection size [in]

1 1/8 in

Outlet connection type

SOLDER, ODF

Packing format

Multi pack

PED category

Art. 3, par. 3

Product accessories

No

Product description

Suction line filter drier

Product family name

DAS

Product group

Filter driers

Product name

Hermetic burn-out filter drier

Quantity per packing format

8 pc

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a
R513A
R515A

Refrigerants

R125
R134a
R22/R407C
R23
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R455A
R507A
R513A

Serviceable

No

Shell volume [foz US]

24.42 oz

Shell volume [l]

0.72 L

Solid core surface [cm2]

340 cm²

Solid core surface [in2]

52.7 in²

Solid core volume [cm3]

258 cm³

Solid core volume [in3]

15.77 in³

Specification key

DAS 309SVV

Temperature range [°C] [Max]

70 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

160 °F

Temperature range [°F] [Min]

-40 °F

Type

DAS

Type designation

DAS 309SVV

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R507A
R513A
