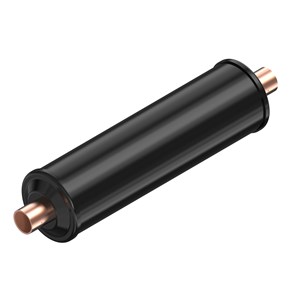

PHIN LỌC DANFOSS DCL 309S - C/N 023Z0118

Gross weight

3.34 kg

Net weight

3.34 kg

EAN

5702428159357

Acid capacity [g]

6.55 g

Acid capacity [oz]

0.231 oz

Activated alum/Molec sieve [%]

0% / 100%

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

Category

Art. 3, par. 3

Connection material

Copper

Core

Solid core

Core Size code

75 cu.in.

Drying Cap[Drops of Water]24°C

R134a: 3043
R290: --
R32: --
R404A: 3170
R407C: 2955
R410A: 2755
R507: 3320

Drying Cap[Drops of Water]52°C

R134a: 2786
R290: --
R32: --
R404A: 3003
R407C: 2724
R410A: 2450
R507: 2987

Flow capacity [kW]

R290: --
R134a: 98.6
R32: 150.3
R404A: 69.4
R407C: 101.1
R410A: 102.6
R507: 67.3

Flow capacity [TR]

R134a: 28.0
R290: --
R32: 42.7
R404A: 19.7
R407C: 28.7
R410A: 29.2
R507: 19.1

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

Inlet 1 connection size [in]

1 1/8 in

Inlet connection type

SOLDER, ODF

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar
tliq= 30°C
tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi
tliq= 86°F
tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

30 bar

Max. Working Pressure [psig]

435 psig

Net volume [foz US]

37.46 oz

Net volume [l]

1.108 L

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515A

Outlet 1 connection size [in]

1 1/8 in

Outlet connection type

SOLDER, ODF

Packing format

Multi pack

PED category

Art. 3, par. 3

Product accessories

No

Product description

Liquid line filter drier

Product family name

DML

Product group

Filter driers

Product name

Hermetic filter drier

Quantity per packing format

12 pc

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a
R513A
R515A

Refrigerants

R125
R134a
R22/R407C
R23
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R507A
R513A
R1233zd(E)
R407H
R463A
R515B

Serviceable

No

Shell volume [foz US]

61.49 oz

Shell volume [l]

1.82 L

Solid core surface [cm2]

829 cm²

Solid core surface [in2]

128.53 in²

Solid core volume [cm3]

711 cm³

Solid core volume [in3]

43.37 in³

Specification key

DML 759S

Temperature range [°C] [Max]

70 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

160 °F

Temperature range [°F] [Min]

-40 °F

Type

DML

Type designation

DML 759S

UL approval file name

SA6398

UL approved refrigerants

R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R452A
R507A
R513A
