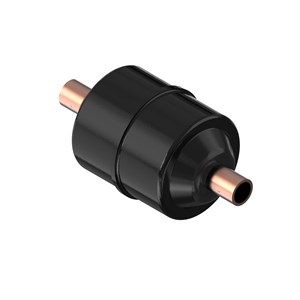

PHIN LỌC DANFOSS DML 165S - C/N 023Z506891

Gross weight

0.75 kg

Net weight

0.66 kg

EAN

5702428650380

Acid capacity [g]

1.2 g

Acid capacity [oz]

0.042 oz

Activated alum/Molec sieve [%]

0% / 100%

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

Category

Art. 3, par. 3

Connection material

Copper

Core

Solid core

Core Size code

16 cu.in.

Drying Cap[Drops of Water]24°C

R134a: 559
R290: --
R32: 470
R404A: 582
R407C: 543
R410A: 506
R507: 610

Drying Cap[Drops of Water]52°C

R134a: 512
R290: --
R404A: 551
R407C: 500
R410A: 450
R507: 548
R32: 433

Flow capacity [kW]

R134a: 38.7
R290: 46.6
R32: 58.9
R404A: 27.2
R407C: 39.6
R410A: 40.2
R507: 26.4

Flow capacity [TR]

R134a: 11.0
R290: 13.2
R32: 16.8
R404A: 7.7
R407C: 11.3
R410A: 11.4
R507: 7.5

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

Inlet 1 connection size [in]

5/8 in

Inlet connection type

SOLDER, ODF

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar
tliq= 30°C
tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi
tliq= 86°F
tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Net volume [foz US]

7.63 oz

Net volume [l]

0.226 L

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515A

Outlet 1 connection size [in]

5/8 in

Outlet connection type

SOLDER, ODF

Packing format

Multi pack

PED category

Art. 3, par. 3

Product description

Liquid line filter drier

Product group

Filter driers

Product name

Hermetic filter drier

Quantity per packing format

12 pc

Refrigerant oil compatibility

Oilfree applications
R1234ze(E)
R134a
R513A
R515A

Refrigerants

R1234yf - R125 - R134a - R22/R407C - R23 - R290 - R32 - R404A - R407A - R407F - R410A - R422B - R422D - R438A - R444B - R448A - R449A - R449B - R450A - R452A - R452B - R454B - R455A - R507A - R513A - R600 - R1234ze(E) - R1233zd(E) - R407H - R454A - R463A - R515B - R516A - R454C

Serviceable

No

Shell volume [foz US]

11.97 oz

Shell volume [l]

0.35 L

Solid core surface [cm2]

183 cm²

Solid core surface [in2]

28.34 in²

Solid core volume [cm3]

128 cm³

Solid core volume [in3]

7.84 in³

Specification key

DML 165S

Temperature range [°C] [Max]

70 °C

Temperature range [°C] [Min]

-40 °C

Temperature range [°F] [Max]

160 °F

Temperature range [°F] [Min]

-40 °F

Type

DML

Type designation

DML 165S

UL approval file name

SA6398

UL approved refrigerants

R125 - R134a - R22 - R23 - R404A - R407A - R407C - R407F - R410A - R422B- R422D- R438A- R448A - R449A - R449B - R450A - R452A - R507A - R513A
