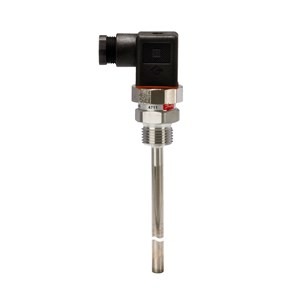

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5250 60MM G1/2 - C/N 084Z8226

Gross weight

0.15 kg

Net weight

0.15 kg

EAN

5702423119721

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

Electrical conn. Male/Female

Male and Female

Electrical connection

Plug

Electrical connection size

Pg 13.5

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Insertion length [in]

2.36 in

Insertion length [mm]

60 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product name

Temperature sensor

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

20 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [Max]

200 °C

Temperature range [°C] [Min]

-50 °C

Temperature range [°F] [Max]

392 °F

Temperature range [°F] [Min]

-58 °F

Type

MBT 5250

Type designation

MBT 5250-0000-060-320

Wires [pcs]

2 pc
