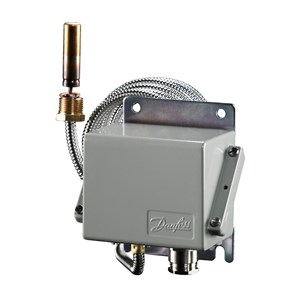

CÔNG TẮC NHIỆT ĐỘ DANFOSS CAS180 - C/N 060L315366

Gross weight

1.21 kg

Net weight

1.15 kg

EAN

5702423148011

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-32 °F

Approval

ABS
BV
CCC
CE
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK
UKCA

Armoring

Yes

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

Charge type

Adsorption

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC15=0.1 A, 220 V
DC13=12 W, 125 V

Diff. @ Min. range setting [K]

2 K

Diff. @ Min. range setting[°C]

2 °C

Differential (FS) [K]

2 K

Differential type

Fixed (max. value)

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP67

Equipment

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Parts included

Gasket set

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product name

Thermostat

Quantity per packing format

10 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Reset function

Auto

Sensor pocket length min. [in]

3 in

Sensor pocket length min. [mm]

75 mm

Sensor size (Ø x L) [in]

1/2 x 2 1/2 in

Sensor size (Ø x L) [mm]

13 x 63 mm

Sensor type

Remote bulb

Serviceable

No

Temperature range [°C] [Max]

120 °C

Temperature range [°C] [Min]

70 °C

Temperature range [°F] [Max]

248 °F

Temperature range [°F] [Min]

158 °F

Type

CAS180
