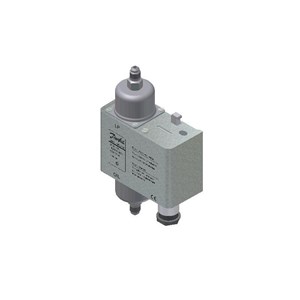

CÔNG TẮC ÁP SUẤT DANFOSS MP55 1-12BAR - C/N 060B017291
Diff.press.setting range [bar]: 0.30 - 4.50, Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
|
Gross weight |
0.78 kg |
|
Net weight |
0.69 kg |
|
EAN |
5702424499761 |
|
Adjustment |
Cut out for falling pressure |
|
Amb. Temp. Note |
Bellows max 100 °C/212 °F |
|
Ambient temperature range [°C] [Max] |
60 °C |
|
Ambient temperature range [°C] [Min] |
-40 °C |
|
Ambient temperature range [°F] [Max] |
140 °F |
|
Ambient temperature range [°F] [Min] |
-40 °F |
|
Approval |
CCC |
|
Contact differential [bar] |
0.2 bar |
|
Contact function |
SPDT |
|
Contact rating |
AC15=2 A, 250 V |
|
Diff.press.setting range [bar] [Max] |
4.5 bar |
|
Diff.press.setting range [bar] [Min] |
0.3 bar |
|
Diff.press.setting range [MPa] [Max] |
0.45 MPa |
|
Diff.press.setting range [MPa] [Min] |
0.03 MPa |
|
Diff.press.setting range [psi] [Max] |
65 psi |
|
Diff.press.setting range [psi] [Min] |
4.3 psi |
|
Electrical conn. Male/Female |
Female |
|
Electrical connection |
Screwed cable entry |
|
Electrical connection size |
Pg 13.5 |
|
Electrical connection standard |
DIN 40430 |
|
Electrical spec. standard |
EN 60947-5 |
|
EN 60947 electrical properties |
Pollution degree: 3 |
|
EN 60947 wiring properties |
Flex, ferrules: 0.2-1.0 mm2 |
|
Enclosure rating IP |
IP20 |
|
Equipment |
Thermal time relay |
|
Factory setting [bar] |
0.65 bar |
|
Factory setting [psig] |
9 psig |
|
Identical product |
060B101266 |
|
Max. test pressure [bar] Pe |
22 bar |
|
Max. test pressure [psig] |
319 psig |
|
Max. Working Pressure [bar] |
17 bar |
|
Max. Working Pressure [psig] |
245 psig |
|
Operat. range LP side [bar] Pe [Max] |
12 bar |
|
Operat. range LP side [bar] Pe [Min] |
-1 bar |
|
Operat. range LP side [psig]Pe [Max] |
175 psig |
|
Operat. range LP side [psig]Pe [Min] |
-15 psig |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4 in |
|
Pressure connection standard |
DIN 8906 |
|
Pressure connection type |
Flare |
|
Pressure Male/Female |
Male |
|
Product accessories |
Generic accessories |
|
Product description |
Diff. Pressure Switch |
|
Product family name |
MP |
|
Product group |
Switches and thermostats |
|
Product name |
Differential pressure switch |
|
Quantity per packing format |
21 pc |
|
Refrigerants |
R11 |
|
Relay release time [s] |
90 " |
|
Reset function |
Manual Min |
|
Serviceable |
No |
|
Type |
MP55 |
|
UL approved refrigerants |
R11 |
