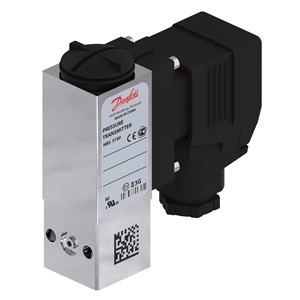

CẢM BIẾN ÁP SUẤT DANFOSS MBS 5150-2511-A9DB04 0-35BAR 4-20mA - C/N 060N1143

Gross weight

0.4 kg

Net weight

0.35 kg

EAN

5702423093984

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.3 %

Accuracy, typical [±FS%]

0.1 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male and Female

Electrical connection

DIN-plug

Electrical connection size

M20

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.4

International Article Number

5702423093984

Intrinsically safe

No

Low Clipping Level

3.6

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-40 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

100 bar

Packing format

Multi pack

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure range [bar] [Max]

35 bar

Pressure range [bar] [Min]

0 bar

Pressure range [kPa] [Max]

3500 kPa

Pressure range [kPa] [Min]

0 kPa

Pressure range [psi] [Max]

507.63 psi

Pressure range [psi] [Min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product name

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

8 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Response time max. [ms]

4 ms

RsExtrapolateMissingPressure

0=Standard

Specification key

MBS 5150-2531-A9DB04-4

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

9 V

Test Signal

Pin 3

Type

MBS 5150
